Palletiser Solution AX Series
High-Reach Palletizing Automation for Demanding Production Lines (AX Series)
Automate taller pallet builds and increase throughput with a high-performance palletizing solution designed for flexibility, speed, and efficient deployment.
Cant find what you’re looking for?
Fill out our quote form instead.
Description
Smarter Palletizing for Modern Production (AX Series)
Need more reach and performance from your palletizing? Palletising solutions can help businesses achieve greater efficiency and flexibility in their operations. Additionally, palletising is an essential process for streamlining workflow in many facilities.
As production scales, palletizing requirements become more demanding. Taller stacks, varied carton sizes, and higher throughput targets can quickly exceed the limits of simpler systems.
To maintain efficiency and consistency, operations need a palletizing solution that delivers greater reach, faster cycle performance, and flexibility across changing production requirements.
A high-performance, ready-to-deploy palletizing solution

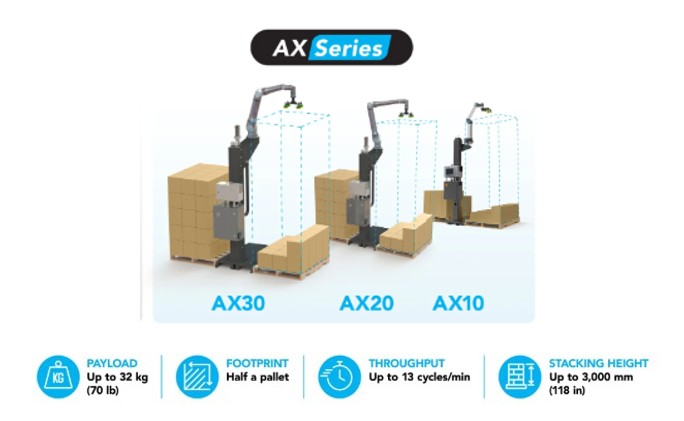

The AX Series is a fully integrated palletizing system designed for fast deployment and high-performance operation. Hardware and software are delivered pre-connected, allowing the system to be installed and commissioned quickly with minimal integration effort.

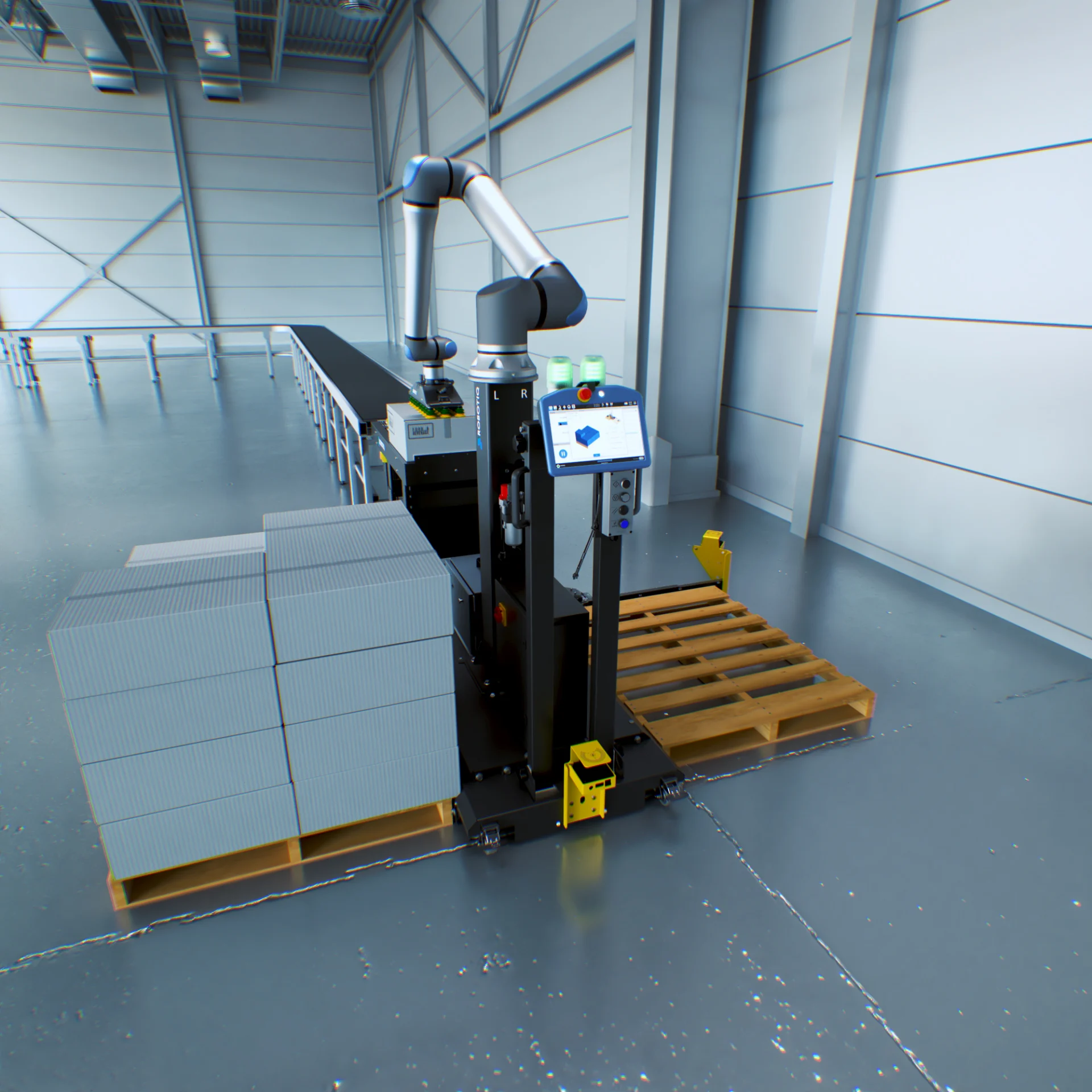

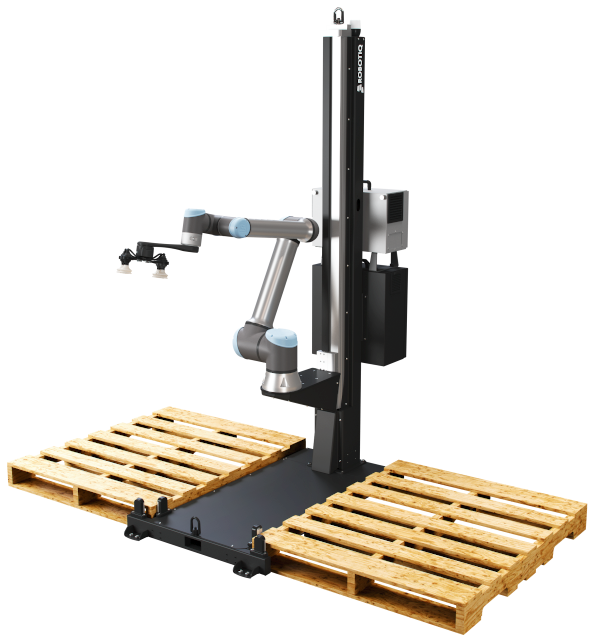

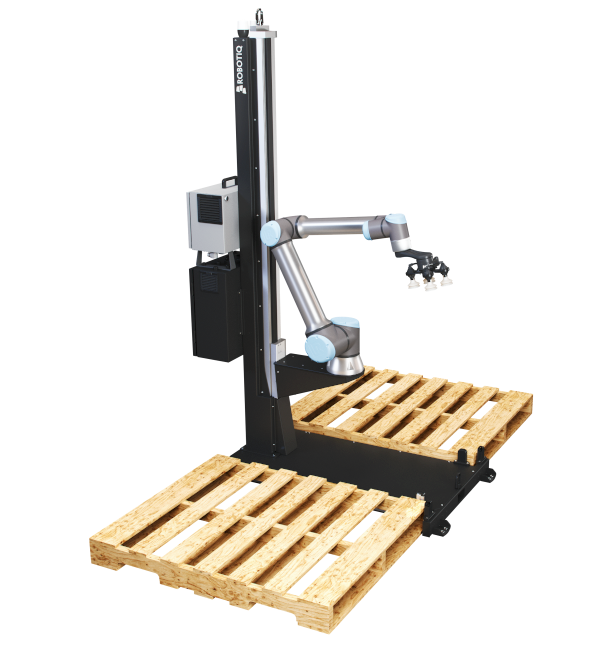

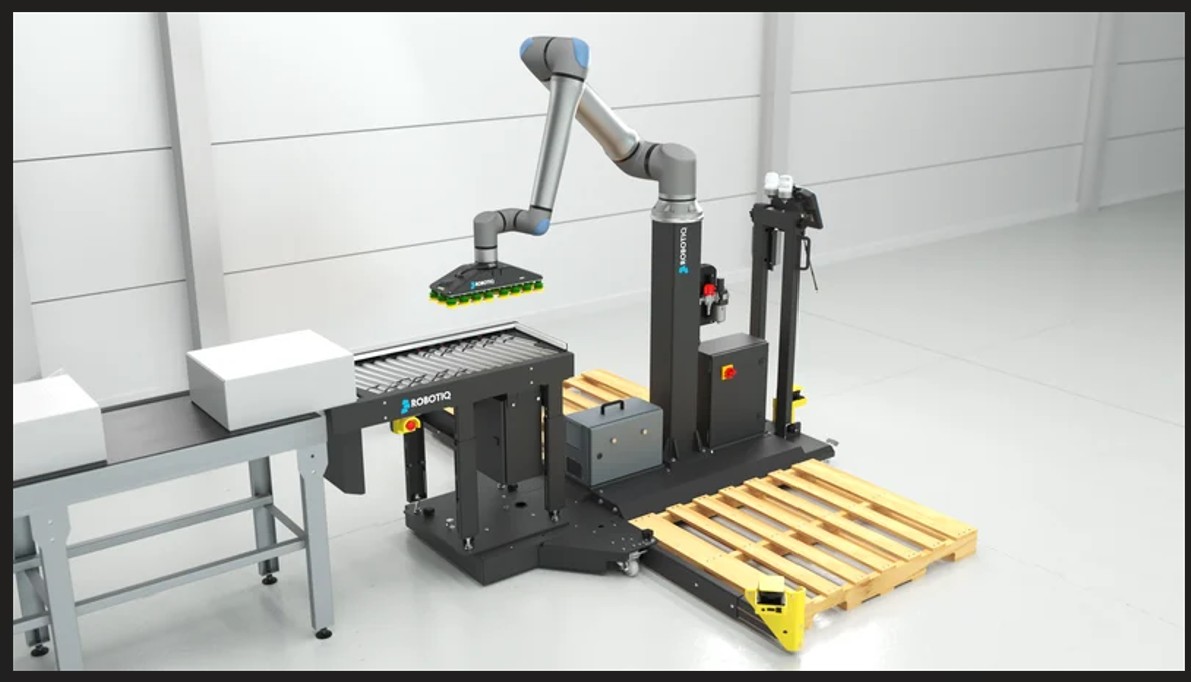

Built around a collaborative robot combined with an integrated vertical axis, the system extends reach while maintaining a compact footprint. This makes it well suited to applications requiring taller pallet builds and greater flexibility in handling different product formats.
Benefits
Why choose the AX Series
- Extended vertical reach – Integrated vertical axis enables the robot to build higher pallets without additional lifting systems.
- Higher performance potential – Optimised motion control between the robot and axis improves throughput and overall efficiency.
- Flexible for varying products – Designed to handle a wide range of box sizes and pallet configurations within the same system.
- Faster return on investment – High cycle performance and simplified deployment contribute to faster implementation and earlier productivity gains
Specifications
Key capabilities
- Integrated vertical axis for extended reach
- Pre-configured system for faster installation
- High-performance palletizing cycle capability
- Handles a wide range of box sizes and pallet heights
- Coordinated robot and axis motion for smooth operation
- Designed for efficient deployment and operation
Note: Actual performance depends on product dimensions, pallet configuration, and system layout.
Best suited for
- Tall pallet builds
- High-throughput production lines
- Operations with varied product sizes
- Facilities requiring flexible palletizing layouts
- Businesses scaling automation across multiple SKUs
Built for speed, precision, and reliability
The AX Series uses synchronised motion between the collaborative robot and the vertical axis to create smooth, efficient palletizing movements. This coordinated motion improves cycle performance while reducing mechanical strain on the system, supporting long-term reliability in production environments.
How it Works
Configure your palletizing application in three steps

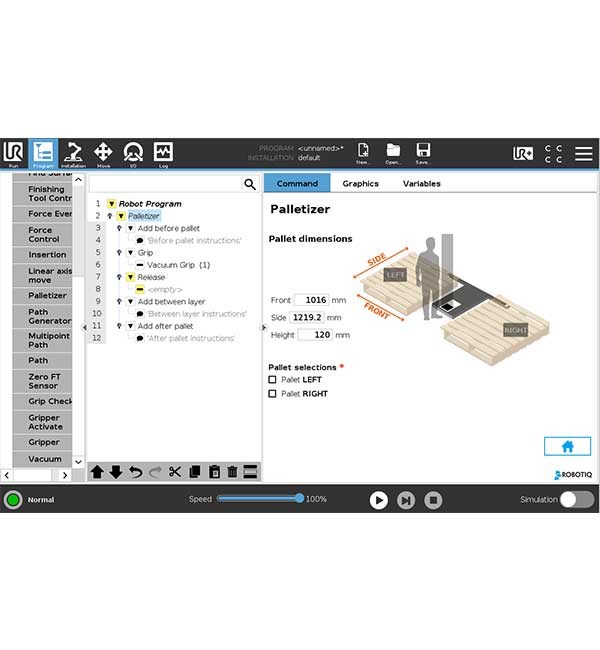

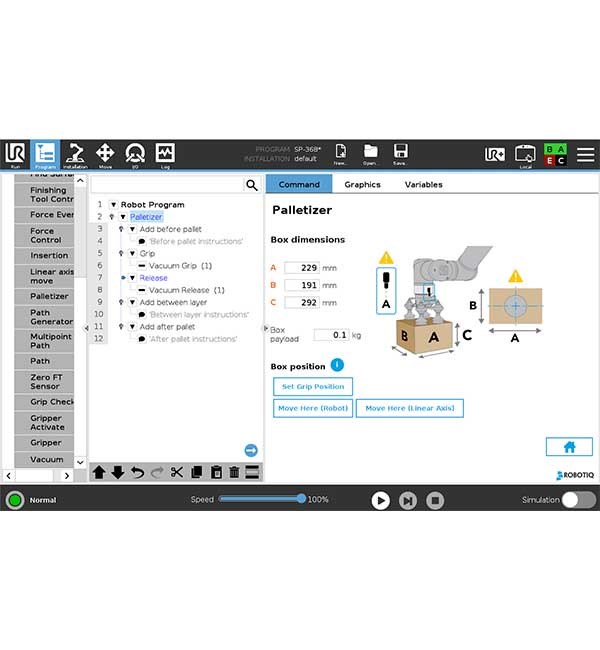

- Enter carton dimensions and pick position

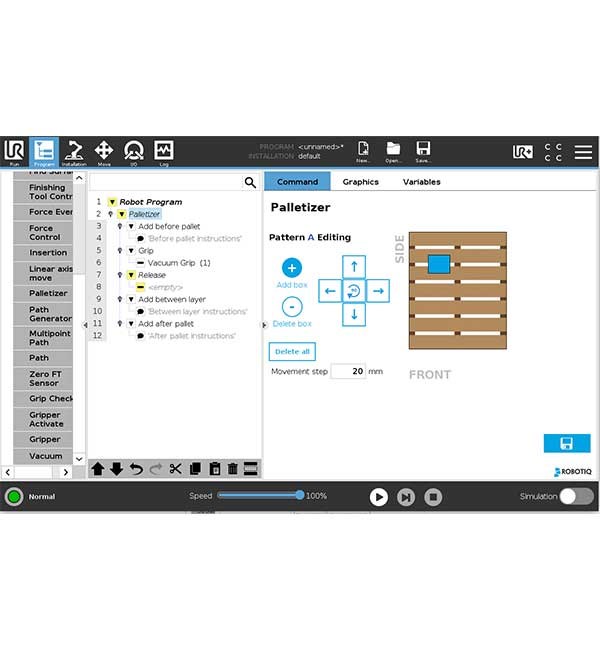

- Define pallet size and layout

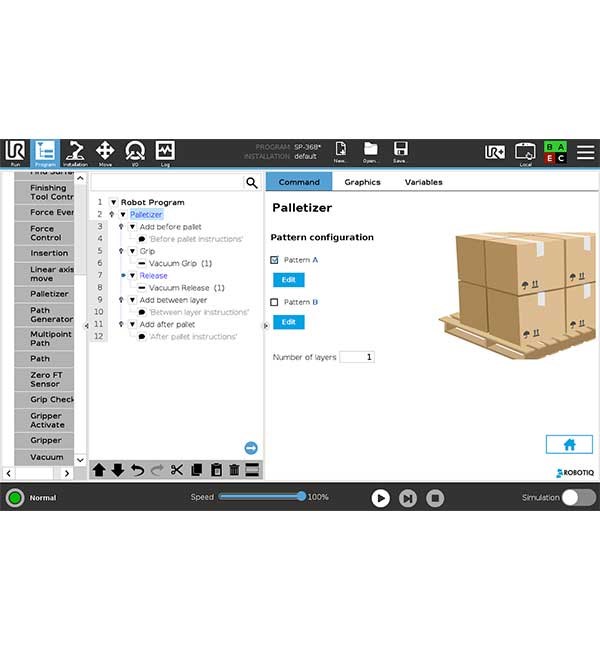

- Generate pallet pattern and stacking sequence automatically

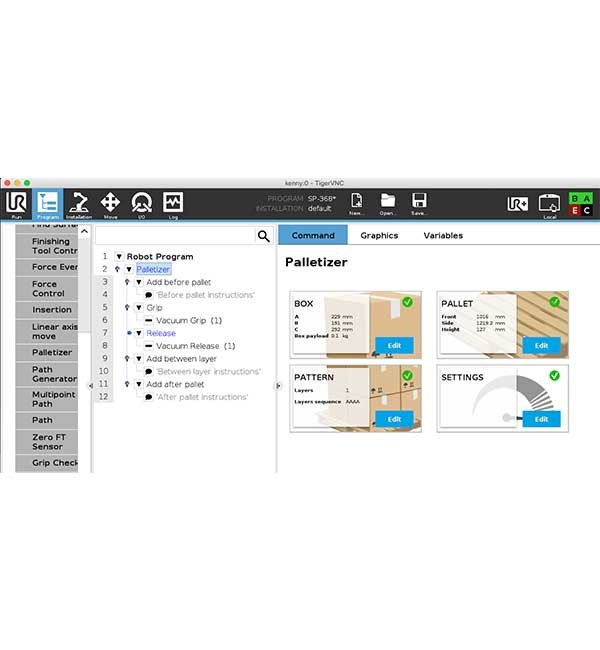

The system uses an integrated software interface that automatically generates and optimises robot movements based on your inputs, removing the need for complex programming.
FAQ
What makes the AX Series different?
The AX Series includes an integrated vertical axis, allowing greater reach and higher pallet builds compared to fixed pedestal systems.
Is it suitable for different product sizes?
Yes, it is designed to handle a wide variety of box sizes and pallet configurations within the same system.
How difficult is it to program?
The system uses a guided interface that automatically generates and optimises robot movements, reducing the need for manual programming.
How quickly can it be deployed?
Because the system is pre-connected and standardised, installation and setup can be completed significantly faster than traditional custom palletizing solutions.
Delivered with Industrial Robotics expertise
Choosing the right palletizing system is only part of the solution. We help you assess your application, confirm system fit, and ensure the AX Series is properly deployed within your production environment.
From initial consultation through installation and support, we focus on delivering a solution that performs reliably in real operating conditions.
We provide:
- Feasibility assessment
- System design support
- Integration and commissioning
- Operator training
- Ongoing support
Find out if the AX Series is right for your operation
Tell us your pallet heights, box sizes, and throughput targets. We’ll help you determine if the AX Series is the right palletizing solution for your site.
Request a Quote
Ready to move forward? Request a Quote and receive a detailed proposal aligned to your operational requirements.
Book a Consultation
Need technical guidance or application advice? Book a Consultation with our automation specialists to discuss your project in detail.
For further information, Send us an Enquiry. We deliver engineered solutions designed to integrate seamlessly and perform with consistency in demanding industrial environments.
